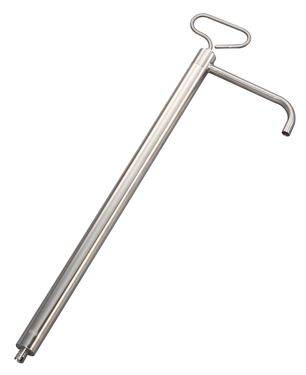

JW-304 (316)簡述
Specifications:
＊Pump Type: Piston
＊Flow: 8 oz / Stroke
＊Inlet: 1/2" Inch
＊Outlet: 1/2" Curved Spout
＊Suction Tube Length: 22"
＊Suction Tube: 1-1/8" OD
＊Max. Viscosity: 5,000 SSU
＊Max. Fluid Temperature: 140˚F / 60˚C
＊Mounting: 2" MNPT Bung Adapter
＊Wetted Parts (JW-304): #304 Stainless Steel & Polyethylene
＊Wetted Parts (JW-316): #316 Stainless Steel & Polyethylene
＊Standard Packing: 20pcs/ctn, NW: 24kgs, GW: 26kgs, Cuft: 4.91'
Features:
＊Self-priming unit.
＊Supply with 2" bung adapter and a PE tube to fit most 15, 30 and 55 gallon drums.
＊Ideal for transferring non corrosive and non aggressive chemicals, such as water based liquids which are compatible with pump component materials.
＊Also suitable for transferring petroleum based fluids of light to medium viscosity, such as automotive additives, diesel, lube oils, kerosene, solvents, thinners, benzene, cleaning solutions, fuels oils, transmission fluid, machine oils, motor oils, etc.
