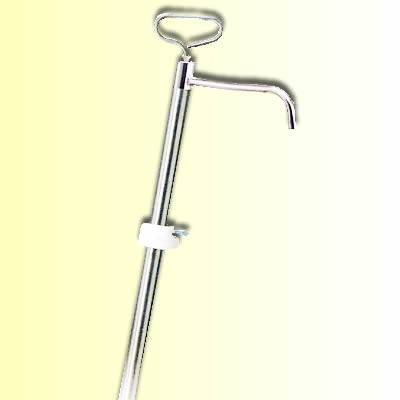

JW-304T(316T)簡述
Specifications:
＊Pump Type: Piston
＊Flow: 8 oz / Stroke
＊Maximum Fluid Temperature: 140˚F / 60˚C
＊Mounting: 2" MNPT Bung Adapter
＊Suction Tube Length: 22"
＊Suction Tube: 1-1/8" OD
＊Inlet: 1/2" Inch
＊Outlet: 1/2" Curved Spout
＊Wetted Parts (JW-304T): #304 Stainless Steel & PTFE & PVDF
＊Wetted Parts (JW-316T): #316 Stainless Steel & PTFE & PVDF
＊Maximum Viscosity: 5,000 SSU
＊Standard Packing: 20pcs/ctn, NW: 24kgs, GW: 26kgs, Cuft: 4.91'
Features:
＊Self-priming unit.
＊Supply with 2" bung adapter and a PTFE tube to fit most 15, 30 and 55 gallon drums.
＊Ideal for transferring soluble, corrosive, volatile and aggressive chemicals, such as esters, ketones, alcohols, bases, alkali, acids, hydrocarbons, chlorinated hydrocarbons and water based liquids which are compatible with pump component materials.
＊Also suitable for transferring petroleum based fluids of light to medium viscosity, such as automotive additives, diesel, lube oils, kerosene, solvents, thinners, benzene, cleaning solutions, fuels oils, transmission fluid, machine oils, motor oils, etc.
