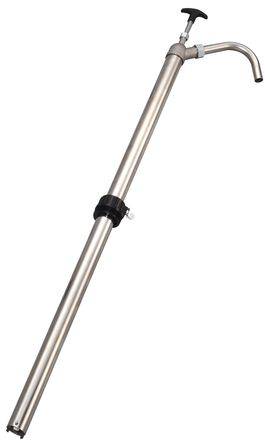

JW-300S(T)簡述
Specifications:
＊Pump Type: Piston
＊Flow: 21 oz / Stroke in full
＊Maximum Fluid Temperature: 140˚F / 60˚C
＊Mounting: 2" MNPT Bung Adapter
＊Suction Tube Length: 37"
＊Suction Tube: 1-1/2" OD
＊Inlet: 1-1/2"
＊Outlet: 3/4" OD
＊Wetted Parts (JW-300S): #304 Stainless Steel & Polyethylene (PE)
＊Wetted Parts (JW-300ST): #304 Stainless Steel & PTFE & PVDF
＊Maximum Viscosity: 2,000 SSU
＊Standard Packing: 12pcs/ctn, NW: 24kgs, GW: 26kgs, Cuft: 3.41'
Features:
＊Self-priming unit, dispenses 21 oz per full stroke.
＊Supply with 2" bung adapter to fit most 15, 30 and 55 gallon drums.
＊JW-300S : for transferring non corrosive and non aggressive chemicals, such as water based liquids which are compatible with pump component materials.
＊JW-300ST: for transferring soluble, corrosive, volatile and aggressive chemicals, such as esters, ketones, alcohols, bases, alkali, acids, hydrocarbons, chlorinated hydrocarbons and water based liquids which are compatible with pump component materials.
＊Both models are also suitable for transferring petroleum based fluids of light to medium viscosity, such as automotive additives, diesel, lube oils, kerosene, solvents, thinners, benzene, cleaning solutions, fuels oils, transmission fluid, machine oils, motor oils, etc.
